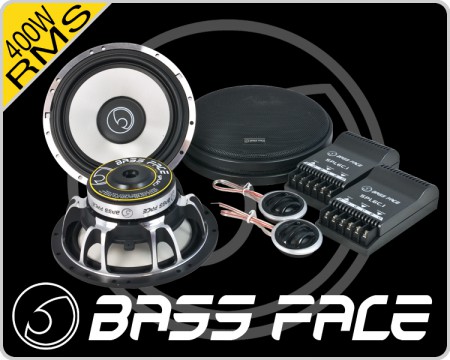

Bass Face SPL6C.1 Component Speaker System
6.5" 800W Peak / 400W RMS SYSTEM
Technical Specification:
Midbass 300W RMS PER PAIR
Tweeter 100W RMS PER PAIR
System 400W RMS / 800W MAX PER PAIR (When used with an 80Hz crossover)
Frequency response 45Hz – 22kHz
Sensitivity 98db @ 1w/m
Tech-One White Woven Composite Cone
Cast Alloy Basket With Twin Arm Technology
Oversized Super High Density Ceramic Magnet
Aerospace Grade Rubber Surround Suspension
1? Custom Tooled Aluminium Voice Coil
Bumped Pole Piece For Improved Excursion
Vented Back Plate For Better VC Cooling
Highly Musical Silk Dome Tweeter
Sibilance Free Bar Type Tweeter Dome Protection
Advanced Component Crossover Network
Euro Mount For Maximum Vehicle Compatibility
Fits Both Metric & Imperial Applications 16.5cm/6.5?
Whats in the box?…
2 x 6.5 inch Mid Drivers With Cast Chassis
2 x Silk Dome Tweeters
2 x High Power Crossovers
2 x Mid Driver Grilles
4 x 1.5m Lengths of Speaker Cable
8 x Spire Speed Nuts
8 x Self Tapping Screws
2 x Surface Mount Tweeter Cups.
Dimensions:
Overall Pack Weight = 3210g
Product Weight = 1230g per side for Midrange/Grille/Tweeter/Crossover
Tweeter:
Overall diameter 50mm
Mounting depth 13mm
Front protrusion 12mm
Mounting cutout diameter 40mm
Crossovers:
Height 35mm at max point
Width 65mm
Length 120mm
Midrange;
Overall diameter 165mm
Mounting cutout diameter 145mm
Mounting depth 70mm
Front protrusion 8mm
Grilles:
Overall diameter 184mm, Depth 20mm
